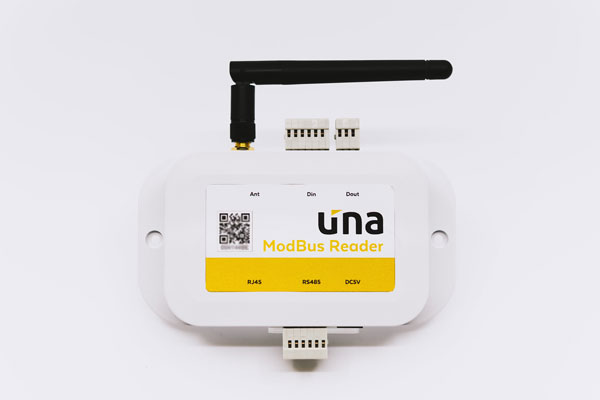

UNABIZ’S

MODBUS READER

battery icon

Low Power

Assisted Integration

Time Saving

Rugged

Features:

Modbus <-> SigFox transmission

Auto-searching device ID

Surge protection for RS-485 and power line

Supports Modbus/ASCII, RTU Protocol to control devices

Power shutdown alarm

Serial Communications

Port Type RS485
Port Connector RJ45
Data Bits 7, 8
Stop Bits 1, 2
Parity None, Odd, Even, Mark, Space
Baud Rate 50 bps ~ 921.6 kbps
Data Signals Data+, Data-, GND
Protection 15 KV ESD protection
Port Connector 8-pin RJ45

Power Requirement

Power Input 5 VDC
Power Consumption 2W

Radio Communication

SigFox support zone: RCZ1/2/3/4
Frequency: 868-920.8Mhz
Uplink Sigfox classes: Class 0u
Support dual way transmission
Tx power max: 22.5dBm
Rx Sensitivity(@600bps): -129dBm
External Antenna (¼ wave)

Environment

Operating Temperature -10 ~ 60°C (14 ~ 140°F)
Storing Temperature -20 ~ 80° C (-4 ~ 176° F)
Operating Humidity 5 ~ 95% RH

General

Certifications CE
LED Indicators System: Power, System Status

Software

Customize

Mechanics

Dimensions (H x W x D) 125 x 68 x 23 mm
Enclosure ABS with solid mounting hardware
Mounting wall
